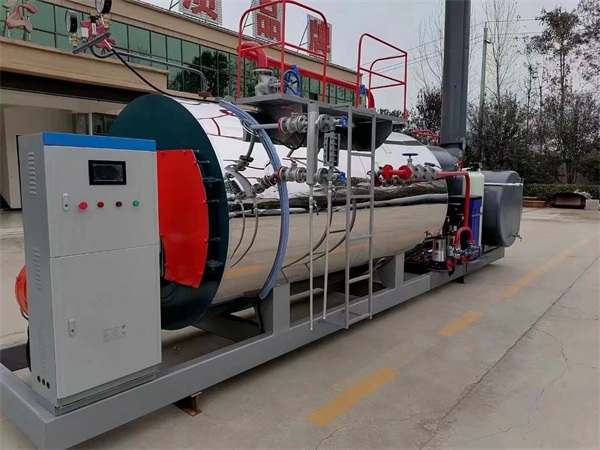

Oil fired steam boiler

  • Evaporation


  • Fuel

    Various kinds of oil and gas

  • Rated working steam temperature


inquire now


FuelVarious kinds of oil and gas
Rated working pressure0.7Mpa、1.0Mpa、1.25Mpa、1.6Mpa、2.5Mpa
Rated working steam temperature170℃、184℃、194℃、204℃、224℃


Model Evaporation capacity Steam temperature Shipping size(m)
WNS0.3-0.7-YQ 0.3T/H 170℃ 2.46×1.16×1.5
WNS0.5-1.25-YQ 0.5T/H 194℃ 3.2×2.36×2.6
WNS1-1.25-YQ 1T/H 194℃ 3.9×1.87×2.1
WNS2-1.25-YQ 2T/H 194℃ 4.1×1.9×2.2
WNS4-1.25-YQ 4T/H 194℃ 4.87×2.15×2.64
WNS6-1.25-YQ 6T/H 194℃ 5.32×2.23×2.63
WNS8-1.25-YQ 8T/H 194℃ 6.01×2.9×3.27
WNS10-1.25-YQ 10T/H 194℃ 6.86×2.9×3.27
WNS20-1.6-YQ 20T/H 204℃ 9.3×2.3×3.84


  • 1Gas steam boiler is an environmentally friendly boiler, natural gas is a new type of clean fuel, in the combustion process will not produce harmful gas and smoke. Coal-fired boilers will produce a large amount of carbon dioxide and smoke during use, endangering human health and seriously affecting atmospheric air quality.
  • 2The service life of gas steam boiler is relatively long, because the gas steam boiler uses clean fuel, so it will not produce soot and dust in the furnace when combusting, so the service life is longer than other types of boilers.
  • 3Gas steam boiler is an energy-saving boiler.
  • 4 Gas steam boilers have a great development trend.
  • 5The thermal efficiency of gas steam boiler is relatively high, compared with coal-fired boiler and oil boiler, the thermal efficiency of gas boiler is the highest, generally reaching more than 90%.


  • wood industry

    it is mainly used for hot pressing of fiberboard, particle board, laminate, plywood, veneer and heating of wood drying equipment, drying equipment, coating equipment and gluing machines.

  • building materials industry

    it is mainly used for gypsum board drying, concrete component solidification protection and prefabrication production, tile molding, decorative material drying and linoleum production line heating.

  • road construction projects

    it is mainly used for asphalt heating, dissolution, asphalt silage tank, asphalt concrete and emulsified asphalt heating and insulation.

  • textile printing and dyeing industry

    it is mainly used for heating drying and setting devices, hot melt dyeing devices, dyeing and printing devices, dryers, dryers, calenders, flatteners, washing machines, rolling mills, ironing machines, hot air stwelfare, etc.

  • automobile industry

    it is mainly used for the heating of tunnel drying rooms, skimming baths and phosphoric acid treatment equipment.

  • coking industry

    it is mainly used for heating and heat preservation of gas storage tanks, mixing stations and distribution stations.

  • national defense scientific research

    it is mainly used for high-temperature heat sources required for the development of new technologies, new materials and new products in national defense scientific research.

  • carbon industry

    it is mainly used for graphite electrodes, carbon products, asphalt melting, kneading pot heating, extrusion heating.

  • maritime industry

    it is mainly used for heavy oil tanks, asphalt tanks, sulfur tanks on ships and containers that need to be heated and insulated.

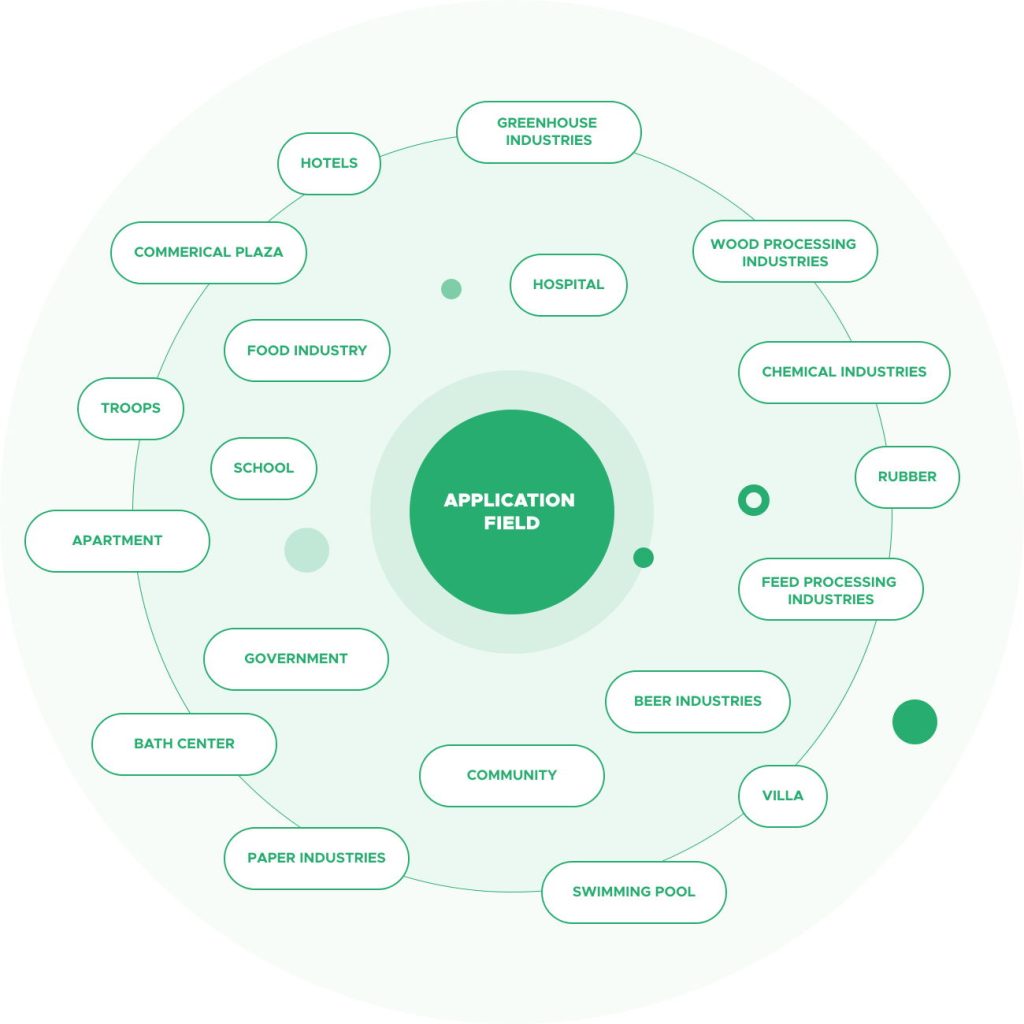

Our products be used in many kinds of different field, such as food industry, feed processing industries, beer industries, hotels, school, government, apartment, chemical industries, commerical plaza, troops, hospital, rubber, wood processing industries, bath center, swimming pool, paper industries, community, villa, greenhouse industries, etc
